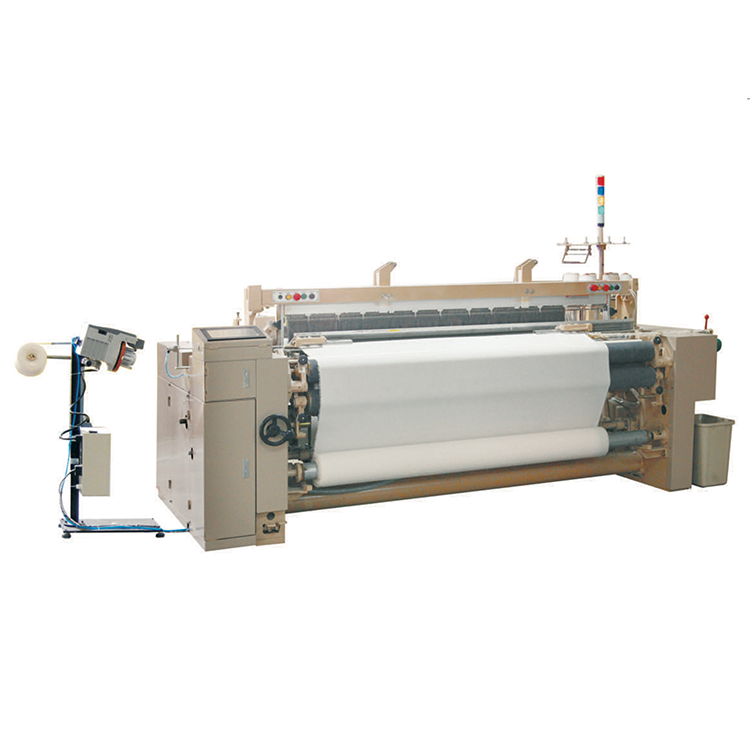

New technology used velvet fabric weaving machine air jet loom
Home > Products > Air Jet Loom > New technology used velvet fabric weaving machine air jet loom

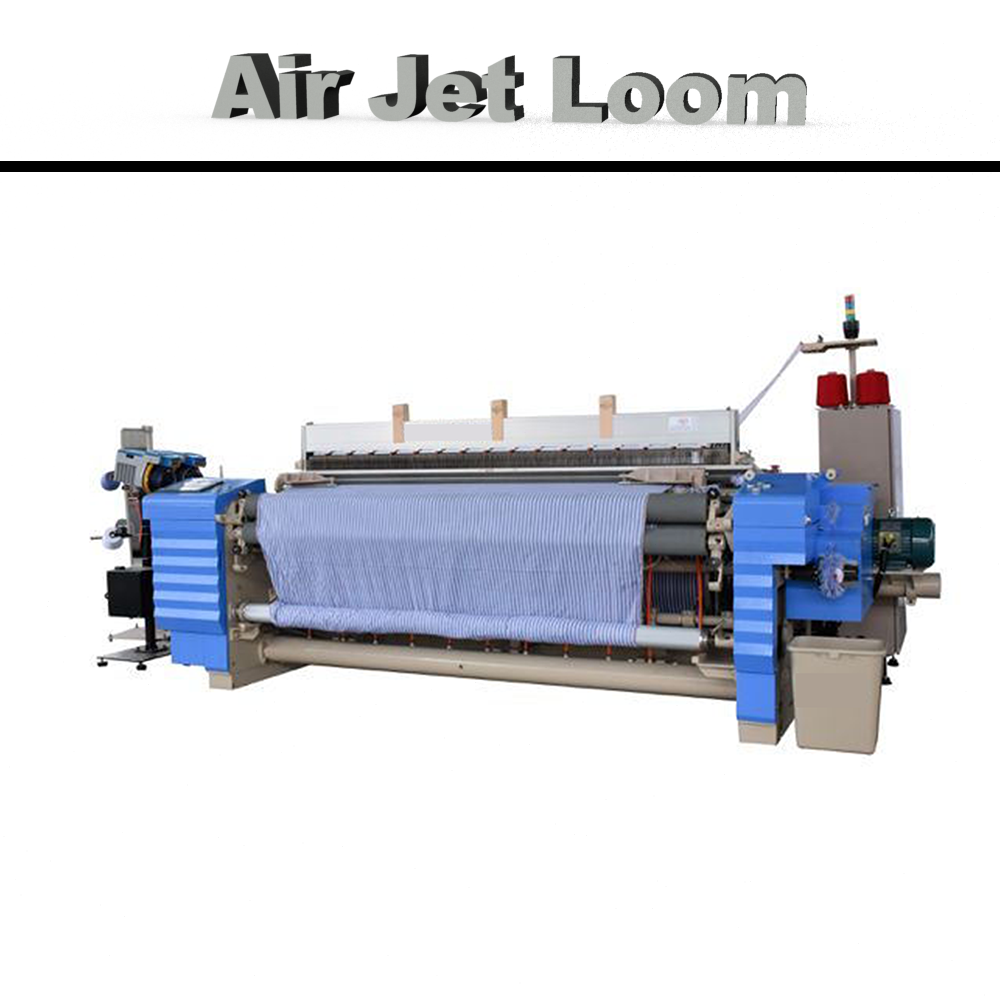

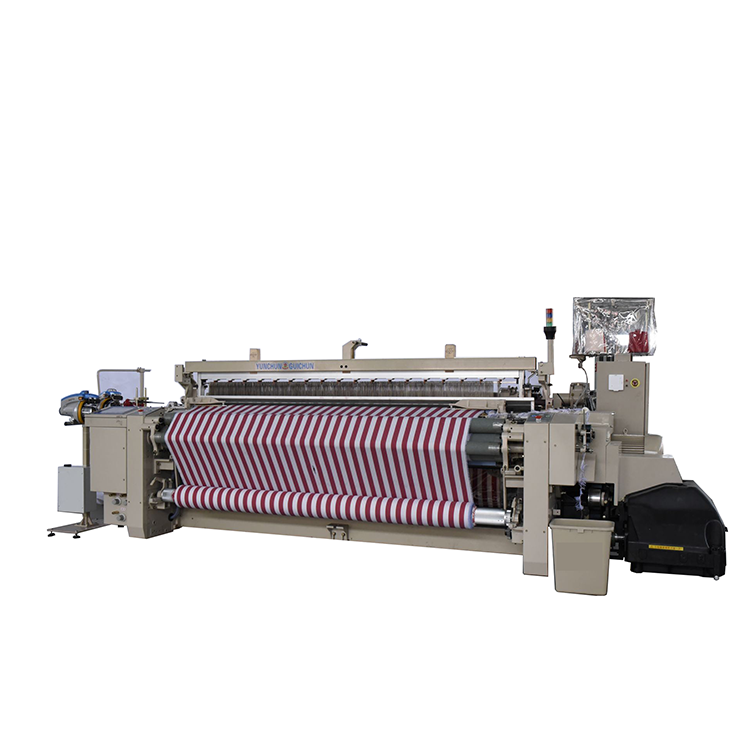

New technology used velvet fabric weaving machine air jet loom

Product Description

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-6{padding:0;font-size:16px;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{margin:0;padding:0}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{padding:5px 10px;overflow:hidden;width:724px;box-sizing:content-box}#detail_decorate_root .magic-13{text-align:center}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{padding:5px 10px;overflow:hidden;width:164px;box-sizing:content-box}#detail_decorate_root .magic-16{padding:5px 10px;overflow:hidden;width:163px;box-sizing:content-box}#detail_decorate_root .magic-17{padding:5px 10px;overflow:hidden;width:538px;box-sizing:content-box}#detail_decorate_root .magic-18{padding:5px 10px;overflow:hidden;width:537px;box-sizing:content-box}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:455.4px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:742.5px;height:455.4px}#detail_decorate_root .magic-21{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-22{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-23{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-24{position:relative;left:0;top:-115px;width:371px;height:371px}#detail_decorate_root .magic-25{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-26{position:relative;left:0;top:-81px;width:371px;height:371px} Product Description JWYC7100 This model uses the most current advanced technology for the beating section,weft insertion by centralized air jet and human-machine interface disply system.The successful development of the model reduces user equipment cost,which means simple fabrics can be made by low-cost machine.It is suitable to weave cotton,polyester,and blend fabric.
Reed width
150,170,190,210,230,260,280,320,340,360cm
Weft selection
1,2,4 or 6 colors
Weft insertion
The main and auxiliary nozzles are electronically controlled
Beating
Solid beating shaft with multiple foot stand, Four crank shedding beating
Take-up
Electric take up,Max rolling φ600mm
Shedding
crank shedding/positive cam shedding/electronic dobby shedding
Air supplying
Centralized air compressor
Speed
500~1000rpm
Power
2.8kw,3.0kw,3.8kw,4.5kw
Weft density
5-60 picks/inch
Gears in main box
T tooth with QT700 material
Main Features 1) The air jet weaving media is rich and cheap, and can be recycled.
2) When the weft insertion speed is flying, there is no danger of rolling and it is safer.
3) The device with a weft removal and an automatic head is provided, which has a high degree of automation.
4) The mechanical mechanism of the loom is relatively simple and the product quality is high. 5) Working media is easy to obtain. The working medium is air, which can be obtained in the atmosphere, and the used       air can be directly discharged into the atmosphere for convenient handling. Moreover, the compressibility of the air         can be used to store energy and concentrate. 6) The structure is simple, the maintenance is convenient, the pipeline is not easy to be blocked, and there is no                 problem of deterioration of the medium, replacement and replacement. About us Application Our Service Pre-Sales Service * Inquiry and consulting support.  * View our Factory. After-Sales Service

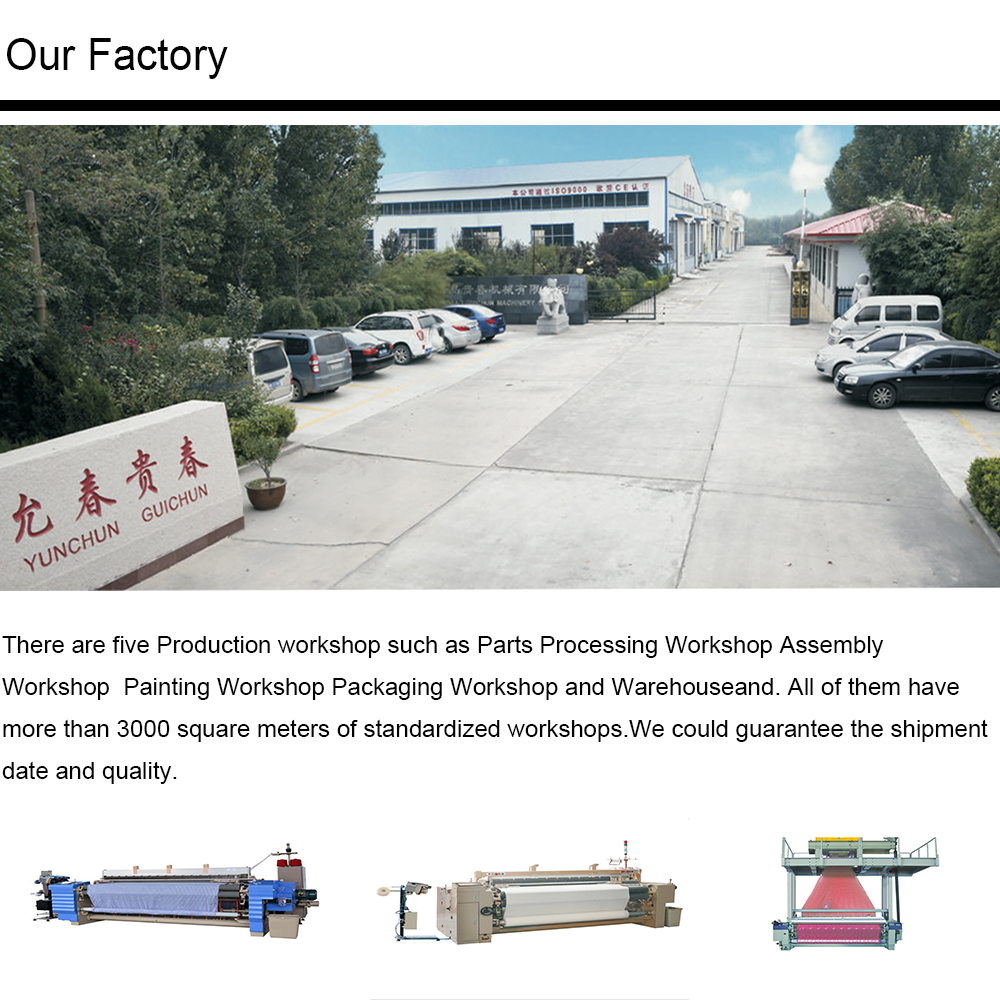

* 1 year warranty. * Engineers available to service machinery overseas. Our company Our customers

Contact us if you need more details on nissan air jet loom. We are ready to answer your questions on packaging, logistics, certification or any other aspects about secondhand air jet loom、air jet loom jacquard. If these products fail to match your need, please contact us and we would like to provide relevant information.
